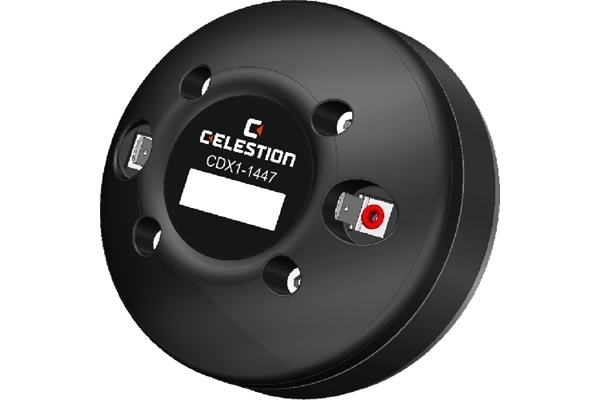

celestion cdx1-1447 35w 8ohm hf ferrite celestion - cdx1-1447 35w 8ohm - hf compression driver - ferritefeatures- 1 exit, ferrite magnet compression driver with 1.4 inch diameter copper clad aluminium voice coil- 35wrms (aes standard) power handling and 106db sensitivity- one piece polyimide diaphragm and surround- finite element analysis (fea) techniques used to optimise both magnetic and acoustic design- suitable for 2-way and 3-way systemsgeneral specificationspower rating(1): 35wrmscontinuous power rating(2): 70wnominal impedance: 8ohmfrequency range: 1500-20,000hzsensitivity(3): 106dbrecommended min. crossover (12db/oct): 2200hzvoice coil diameter: 35mm/1.4invoice coil material: copper clad aluminiummagnet type: ferritediaphragm material: polyimidesurround material: polyimidemounting informationwidth: 90mm/3.54indepth: 46.5mm/1.83inweight: 1kg/2.2lbfitting: flange (4 x m6 holes on 76mm/3in pcd)throat exit: 25mm/1incompatible hornsh1-9040p , h1-7050 no bellnote(1)tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per aes standard. power calculated on minimum impedance.(2)continuous power handling is defined as 3db greater than the aes rating.(3)measured on axis at 1w, 1m, using typical horn, in 2pi anechoic environment.
