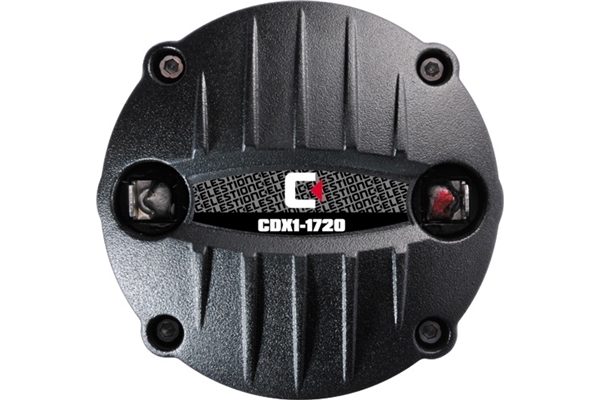

celestion cdx1-1720 50w 8ohm features- 1 exit, lightweight and compact compression driver featuring neodymium magnet and 1.75 diameter titanium diaphragm- 50wrms (aes standard) power handling and 107db sensitivity- rolled polyimide surround improves stiffness control, further lowering distortion- lower resonance enabling lower crossover frequency- patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs- lower compression ratio reduces air non-linearity and allows for higher maximum spl- curved coherent wavefront, optimised for horn loadinggeneral specificationspower rating(1): 50wrmscontinuous power rating(2): 100wnominal impedance: 8ohmsensitivity(3): 107dbfrequency range: 800-20,000hzrecommended min. crossover (12db/oct): 1500hzvoice coil diameter: 44mm/1.75invoice coil material: edgewound copper clad aluminiummagnet type: neodymiumdiaphragm material: titaniumsurround material: polyimidemounting informationmaximum width: 88.5mm/3.48inminimum width: 82.0mm/3.23indepth: 55mm/2.2inweight: 0.65kg/1.4lbfitting: flange (4 x m6 holes on 76mm/3in pcd)throat exit: 25.4mm/1incompatible hornsh1-9040p , h1-7050 no bell (1)tested for two hours on plane wave tube using continuous band-limited pink noise as per aes standard. power calculated on minimum impedance.(2)continuous power handling is defined as 3db greater than the aes rating.(3)measured on axis at 1w/1m, using typical horn, in 2 anechoic environment.
